Core W100
缺货
型号
CA-1F2-00F1WN-00
¥ 1,999.00
W100即可单独当作系统使用外,创客更可加购选配P100,将W100与P100结合打造成独一无二的WP100高端计算机系统。

|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
型号 | CA-1F2-00F1WN-00 |
---|---|
系列 | Core 系列 |
机种 | Core W100 |
机型 | Super Tower |
尺寸(高*宽*深) | 677 x 310 x 678 mm (26.7 x 12.2 x 26.7 inch) |
重量 | 22.4kg / 49.4 lb |
侧窗 | Transparent Window |
颜色 | Exterior & Interior : Black |
材质 | SPCC |
PCI插槽 | 10 |
适用主机板 | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX) , 12” x 13” (E-ATX) , 13.6” x 10.4” (XL-ATX) |
I/ O连接埠 | USB 3.0 x 4, HD Audio x 1 |
电源供应器 | Standard PS2 PSU (optional) |

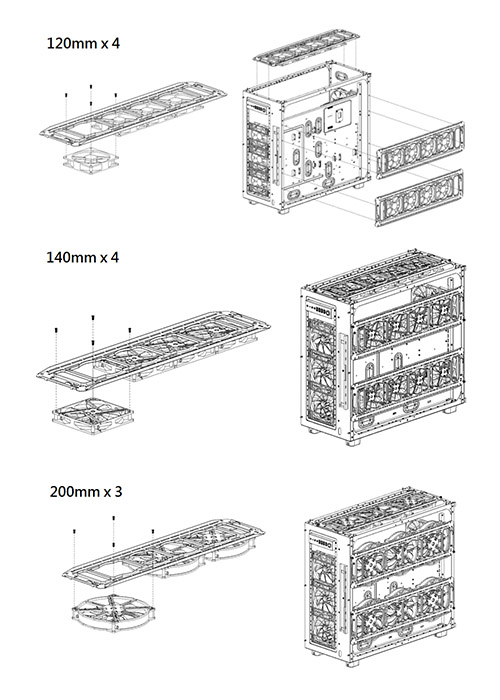

风扇支持 | Front: 3 x 120mm , 3 x 140mm Top: 4 x 120mm , 4 x 140mm , 3 x 200mm Rear: 1 x 120mm , 1 x 140mm Bottom: 3 x 120mm , 3 x 140mm Right Side: 8 x 120mm , 8 x 140mm , 6 x 200mm |

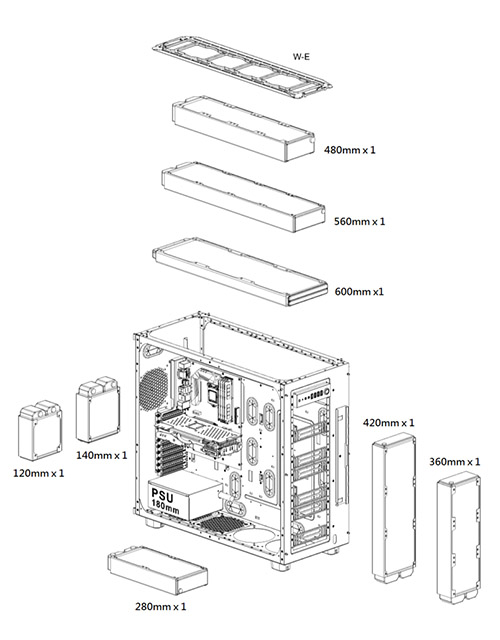

水冷排支援 | Front: 1 x 360mm , 1 x 420mm Top: 1 x 480mm , 1 x 560mm , 1 x 600mm Rear: 1 x 120mm , 1 x 140mm Bottom: 1 x 140mm , 1 x 280mm |
Clearance | CPU cooler height limitation: 200mm VGA length limitation: 470mm(with HDD rack) 635mm(without HDD rack) PSU length limitation: 180mm (With Three Bottom Fan) 220mm (With Two Bottom Fan) |
使用手册
- 档名
- 描述
- 尺寸
- Version
- Release Date

Tweak Town
2018-12-07
"The Bottom Line: Thermaltake and its Core W100 takes cases to a whole new level of awesomeness! All the room most will ever need, modularity and a ton of potential, and it even has a matching pedestal option. For what you get in this design, you will be hard pressed to find a better deal in a competing design."
<More>
Hardwareluxx
2018-12-07
Positive Aspekte des Thermaltake Core W100:
- vollmodularer Aufbau, dabei Zusammenbau mit Anleitung unproblematisch
- enorme Kühl- und Storagemöglichkeiten, das gilt erst recht für die Kombination mit dem optionalen Core P100
- Kompatibilitätsprobleme sind im riesigen Innenraum fast ausgeschlossen
- viele nutzerfreundliche Details wie abziehbare Front/Deckel, herausnehmbare Lüfter-/Radiatorenblenden, Kabelmanagement, magnetische Staubfilter
<More>
