Level 20 XT 强化玻璃平躺式机箱 Level 20 XT 强化玻璃平躺式机箱 Level 20 XT 强化玻璃平躺式机箱 Level 20 XT 强化玻璃平躺式机箱 Level 20 XT 强化玻璃平躺式机箱 Level 20 XT 强化玻璃平躺式机箱
Level 20 XT 强化玻璃平躺式机箱

Level 20 XT 强化玻璃平躺式机箱

In stock
型号
CA-1L1-00F1WN-00
USD$ 199.99

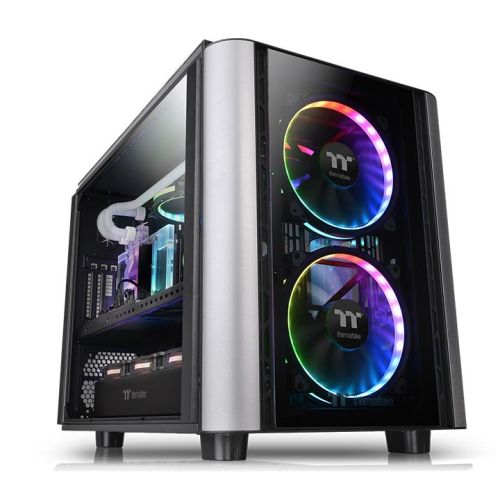

Level 20 XT四面强化玻璃平躺式E-ATX机箱,后方内置一颗140mm风扇。

*此图仅供参考。

*内置一个140mm风扇。

*此图仅供参考。

*内置一个140mm风扇。

*此图仅供参考。

*内置一个140mm风扇。

*此图仅供参考。

*内置一个140mm风扇。

*此图仅供参考。

*内置一个140mm风扇。



More Information
型号 CA-1L1-00F1WN-00
系列 LEVEL 20 系列
机种 Level 20 XT
机型 E-ATX Cube Case
尺寸(高*宽*深) 515 x 394 x 662 mm
(20.3 x 15.5 x 26.06 inch)
重量 20.4 kg / 44.97 lb
侧窗 4mm Tempered Glass x 4(Left & Right & Front & Top)
颜色 Exterior & Interior : Black
材质 SPCC
散热系统 Rear (exhaust) :
140 x 140 x 25 mm fan (1000rpm, 16dBA)
Drive Bays
-Accessible
-Hidden

6 x 3.5’’ or 2.5’’ (HDD Cage)
1 x 3.5’’, 2 x 2.5’’ (M/B Tray)
PCI插槽 8
适用主机板 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX), 12” x 13” (Extend ATX)
I/ O连接埠 USB 2.0 x2, USB 3.0 x2, HD Audio x 1, Type-C x1
电源供应器 Standard PS2 PSU (optional)
风扇支持 Front:
3 x 120mm, 2 x 140mm, 2 x 200mm
Top:
8 x 120mm, 6 x 140mm, 2 x 200mm
Rear:
2 x 120mm or 2 x 140mm
Bottom:
3 x 120mm
Left / Right Side:
4 x 120mm, 3 x 140mm
水冷排支援 Front:
1 x 120mm or 1 x 240mm or 1 x 360mm
1 x 140mm or 1 x 280mm
Top:
2 x 120mm or 2 x 240mm or 2 x 360mm or 2 x 480mm
2 x 140mm or 2 x 280mm or 2 x 420mm
Rear:
1 x 120mm or or 1 x 140mm
Left / Right Side:
1 x 120mm or 1 x 240mm or 1 x 360mm or 1 x 480mm
1 x 140mm or 1 x 280mm or 1 x 420mm
Bottom:
1 x 120mm or 1 x 240mm or 1 x 360mm or 1 x 480mm
1 x 140mm or 1 x 280mm or 1 x 420mm
Clearance CPU cooler height limitation:
250mm
VGA length limitation:
400mm(with ODD cage)
590mm(without ODD cage)
PSU length limitation:
220mm (With Bottom Fan)

使用手册

  • 档名
  • 说明
  • 大小
  • Version
  • Release Date
  • Manual
  • Multi-language
  • 12.9 MB
  • 2018-07-02
Mighty Gadget
2018-12-07

I think I actually prefer this case to the superb GT, the build process is so easy it is a joy to use, and the cooling options are phenomenal. At £200 I don’t even think it is priced that badly, there a lot of cases priced higher than this or at a similar level, many of which don’t offer the level of features available here. The lower cost compared to the Level 20 GT RGB is due to the limited fan selection, but this gives you £100 to spend on your own preference.
The main consideration is its form factor, I don’t think the overall size is larger than the GT model, but its width, length and height make placement in a room a little more difficult. If you are a fan of big cases this absolutely should be worth considering.
Overall, this has to be one of the best solutions on the market for high end builds incorporating elaborate liquid cooling set-ups.
While I have only reviewed a few cases this year, nearly all from Thermaltake, and it is not the end of the year yet, I have a strong suspicion it will be my favourite case of the year. It is cheaper than the GT and you get a lot more room to build in with an exceptional amount of cooling options and customisability.

<More>
Bit-Tech
2018-12-07

In many ways the Level 20 XT is a lot like its predecessor in the Core X series. It's a blank canvas and less of a complete-feeling case due to the fact its massive size and vacant fan mounts mean it does look incomplete without a monstrous water-cooling system inside it. However, we like what Thermaltake has done as the Core X series was certainly not going to win any beauty contests. The Level 20 XT is much more attractive and more solid feeling too.

There are a few niggles such as the gaps in its dust defences, potentially awkwardly placed front panel, and, as you can see above, some of the unattractive machined and drilled support beams could do with some covers, as they stick out like sore thumbs compared to the jazzed up exterior. However, it costs a fraction of the other big boys out there such as the SilverStone TJ11 and Corsair 1000D, yet it can house all the cooling you could ever need. The only competition in this price range comes from more refined tower cases such as the Phanteks Enthoo Evolv X, which has enough water-cooling potential for most HEDT overclocked setups. If needs must, though, and you have several dozen massive radiators that need a new home, the Level 20 XT is ready and willing.

<More>
Hardwareinside
2018-12-07

Pro

  • Viele Glasflächen
  • Sehr viel Platz
  • Sehr viel Platz für Laufwerke
  • Modular aufgebaut
  • Hochwertig verarbeitet
<More>
Hardware Journal
2018-12-07

Pro

  • einfache Montage / Demontage der Seitenwände
  • 4x Tempered Glass Elemente
  • einfache Hardware-Montage
  • hochwertige Haptik sowie Erscheinungsbild
  • tolle Modularität
  • einzigartiger WaKü-Support
  • einfacher, aber strukturierter Innenaufbau
  • USB 3.1 Typ-C im I/O Panel
<More>
