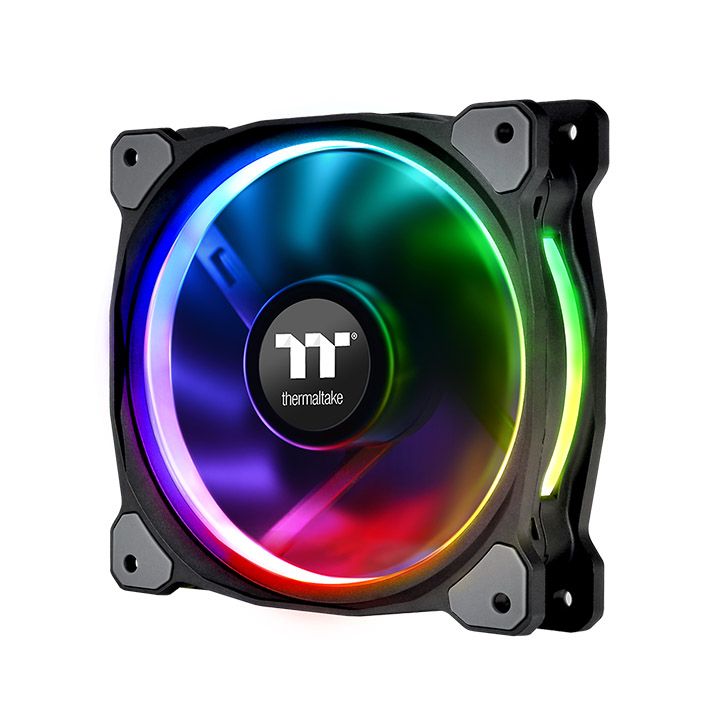

Thermaltake combines the patented gorgeous LED light with cutting-edge technology to deliver a brand new experience of using PC cooling, Thermaltake Riing Plus 14 LED RGB Radiator Fan TT Premium Edition. A 140mm high-static pressure fan with a patented 16.8 million colors LED ring and 12 controllable single LEDs, the Riing Plus 14 RGB features compression blades, hydraulic bearing and a digital fan controller, and can be controlled by the patented Riing Plus RGB Software. Cool your system with high performance Thermaltake Riing Plus 14 RGB!
Featuring 12 controllable single LEDs, great light coverage, and uniform color and brightness, the built-in LED ring can paint your build with 16.8 million colors.
Taiwan Patent: 105218791
US Patent Applied
China Patent Applied
Monitor the fan performance, adjust the fan speeds, and customize the lighting effects for up to 80 fans with Thermaltake’s patented Riing Plus RGB Software. Choose a function from below and scroll down to read the details.
Taiwan Patent: 105216989
Profiles
Conveniently control all fans and customize the lights at the same time by setting up to five profiles for each fan controller. Each controller your system connected is displayed at the top left of the interface for you to quickly access. Within each profile, you can check which fan is set to what operating speed and lighting effect. You can even “SAVE” and apply the settings to other fan controllers your system is running.
Fan Speeds
Simply drag the slider bar to adjust your fan speed RPM on a dedicated control panel. The software is also included a number of preset fan modes that allow you to set the fans to ‘Silent Mode’ where the RPM performs between a 500 – 1500 RPM range, or ‘Performance Mode’ which operates and dynamically adjusts all the way up to 1500 RPM. Besides running at the optimal RPM range, you can customize the speed by disabling PWM.
Fan Alert
The software offers real-time fan warning alerts when performance operating issues have emerged. The control panel of the failed fan will be grey out, so you can quickly identify which fan is causing issues.
Color Palette
Immediately personalize your lighting with the recommended color palette. You can change colors and brigthness for the LED ring which featrues 16.8 million colors, or 12 single LEDs where the lights can be adjusted individually. You also can let each LED display a specific color. Press”Color”, enter the decimal color coded, and then save it.
Light Modes
Apply one of the present light modes that allow you to switch between different lighting schemes along with three “Color modes” (RGB, Single and Off) and four “Light Speeds” (Slow, Normal, Fast and So Fast).
Copy Color– Seamlessly transfer lighting effects of the first fan across to other fans.
Full Lighted – A static lighting with your color choice, including RGB colors and single color.
Sound Control – Sync lights with your favorite music that is imported from your PC, and see how they react to the beat.
Flow – Directional RGB colored flow across the individual LED of the ring.
RGB Spectrum – A seamless transition through the entire 16.8 million RGB color spectrum.
Ripple – Lights ripple out across the entire fan with your choice of 16.8 million colors.
Blink – Lights keep flashing on and off with single color or RGB colors.
Pulse – A slow fade in and fade out with your color choice.
Wave – A RGB wave flows across the entire fan.
Wave – A RGB wave flows across the entire fan.
The controller is designed with a DIP switch on the back. Hence, you can set a number for each controller easily. You can add up to 5 fans to one fan controller and up to 16 controllers to the software. The controller and the coding guide are included in all packs.
The Nine fan blades are engineered to generate higher airflow without compromising on ultra-silent operation. With this unique blade design, the Riing Plus 14 RGB acts as a guarantee of performance.
The hydraulic bearing self-lubricates with a high-quality, friction-reducing substance, which lowers operation noise while improving thermal efficiency. The seal cap prevents lubricant leakage and extends the lifespan of the unit.
Fan Speed(standard)
Noise Level (standard)
Fan Speed(w/ Low Noise Mode)
Noise Level(w/ Low Noise Mode)
In-mold injection anti-vibration rubber pads provide a hassle-free usage with 80% protection coverage for all corners.
连动雷蛇Chroma幻彩
曜越TT RGB PLUS生态系列产品皆可连动雷蛇 Synapse 3软体系统，为您的TT RGB PLUS 水冷散热系统以及电竞装备带来极致灯光效果体验！
备註：需要安装TT RGB PLUS软体以启用曜越AI语音控制、雷蛇Chroma幻彩与亚马逊 Alexa软体。
曜越AI语音控制
透过TT RGB PLUS软体，由语音声控系统全盘控制相容产品。
备註：需要安装至少一个TT RGB PLUS软体可支援之产品以启用曜越AI语音控制、雷蛇Chroma幻彩与亚马逊 Alexa软体。
| 型号 | CL-F057-PL14SW-A |
|---|---|
| 风扇尺寸 | 140 x 140 x 25 mm |
| 介面 | USB 2.0 connectors (9 Pin) |
| 支持系统 | Windows 7 / 8 / 8.1 / 10 |
| 风扇启动电压 | 9.0 V |
| 风扇额定电压 | 12 V & 5V |
| 额定电流 | Fan 0.17 A (one fan) |
| 输入功率 | 12V – 9 W . 5V – 14.5W (Fan*5) |
| 风扇转速 | 500 ~ 1400 R.P.M ±10% |
| 静压 (至多) | 1.53 mm-H2O |
| 噪音值 (至多) | 27.2 dB-A |
| 轴承 | Hydraulic Bearing |
| 寿命 | 40,000 hrs,25℃ |
| 重量 | 160 g |
使用手册
- 档名
- 描述
- 尺寸
- Version
- Release Date
-
Manual
- Multi-language
- 1.7 MB
- 2017-03-14
-
Voice Input Command List
- en
- 2018-01-29
-
TT RGB PLUS Alexa Skill Settings SOP
- en
- 2018-08-15
-
TT RGB Plus x Razer Chroma Synchronization Guide
- English
- 2019-05-14
