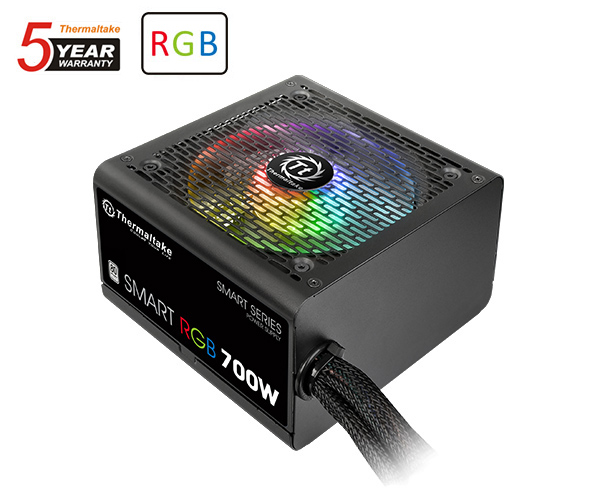

Thermaltake, as the pioneer who incorporates RGB lights into PSU, has launched the Thermaltake Smart RGB Series, coming with a pre-installed RGB fan hub with 15 lighting modes to choose from and built-in memory.
Featuring capacities ranging from 500W to 700W and 80 PLUS Standard certification, Smart RGB Series adopts the high quality components and silent design that always accommodate any mainstream build under any circumstance.
* All images are for reference only; actual specification and lighting effects are based on the real product.
By pressing the RGB lighting button, the fan color can be switched among variants including Pulse Red/Green/Blue/Yellow/Purple/Light Blue/White, RGB Cycle, Solid Red/Green/Blue/Yellow/Purple/Light Blue/ White, and a LED Off mode. The fan is also constructed with a built-in memory function, saving the color applied and insuring the same color selection every time you boot your PC.
* All images are for reference only; actual specification and lighting effects are based on the real product.

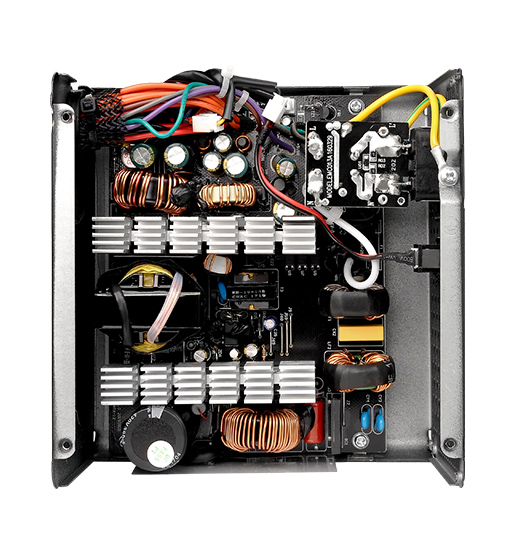

The Smart RGB Series adopts 10 LED light bulbs to enhance the brightness and spawn an advanced user experience in the world of illumination.
* All images are for reference only; actual specification and lighting effects are based on the real product.
SMART RGB series adopt 120mm cooling fan with intelligent RPM control guarantees excellent cool performance and silent operation.
Smart RGB 700W White is equipped with a powerful single +12V rail, eliminating the limitations caused by voltage distributions, delivering the power your CPU and VGA demand in any situations. Providing the best compatibility, conversion efficiency and stable voltage output.

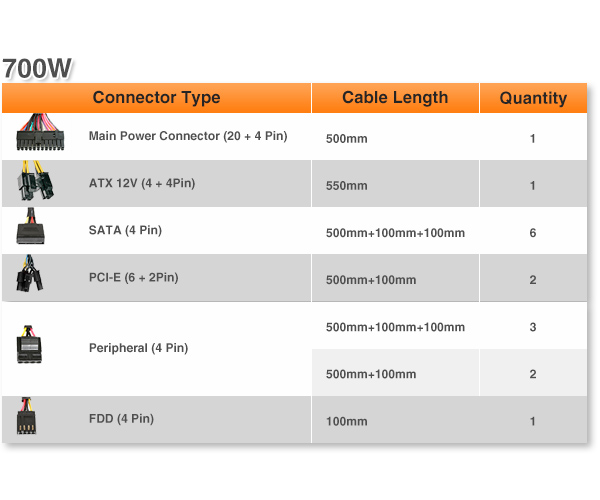

Smart RGB offers cable selection for users while powering the system at an advantageous voltage. Further, the multiple connectors make cable installation an easy task.
Deliver up to 87% efficiency under real world load conditions to promise low power losses. Additionally, Smart RGB Series has been optimized to work with Intel’s latest, seventh-generation Kabylake processors to achieve maximum energy saving.
Smart RGB Series is the best idea for users to go with when they are looking for an RGB PSU which permits remarkable functionality and aesthetics in all cases, especially Open Frame or Tower cases.
* All images are for reference only; actual specification and lighting effects are based on the real product.
| 型号 | PS-SPR-0500NHFAWx-1 |
|---|---|
| watts | 500W |
| RGB风扇 | 有 |
| 主板兼容性 | ATX |
| 机种 | SPR-500AH2NK-1 |
| 系列 | Intel ATX 12V 2.3 |
| 最大输出瓦数 | 500W |
| 颜色 | Black |
| PFC（电源因素校正） | Active PFC |
| P.G讯号 | 100-500 msec |
| 关机保持时间 | 16msec (minimum) within 60% load |
| 输入电流 | 8A max |
| 输入频率 | 50 Hz - 60 Hz |
| 输入电压 | 100Vac – 240Vac |
| 操作温度 | 5℃ to +40℃ |
| 操作湿度 | 20% to 85%,non-condensing |
| 储存湿度 | -40 ℃ to +55 ℃ |
| 储存温度 | 10% to 95%, non-condensing |
| 散热系统 | 120mm Fan: 1800 R.P.M. ± 10% |
| 效率 | 82-86% efficiency @ 20-100% load |
| 平均故障间隔时间 | 100,000 hrs minimum |
| 安规认证 | CE/CB/TUV/ UL/ FCC/ EAC |
| 保护装置 | OVP, OPP, SCP |
