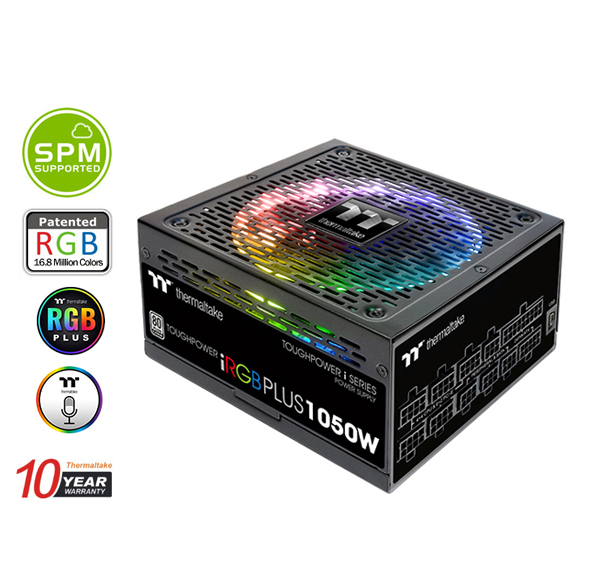

Toughpower iRGB PLUS 1050W 白金牌数位电源
Toughpower i Series TPI-1050F2FDP– 1050W 80 PLUS ® 白金牌认证数位电源






曜越Toughpower iRGB PLUS 1050W白金牌云端智慧电源首创内置高风压1680万色RGB风扇及12颗可单独控制的LED灯,并拥有80 Plus白金牌认证,具备优异的电压调节和转换效率。全模组化设计,采用高品质零件及搭配模组化单编织线材与模组化扁线线材。并結合DPS G PC APP 3.0监控软体、DPS G Mobile APP 1.0手机监控软体以及云端管理平台,此外,Toughpower iRGB PLUS系列拥有电费计算、电源监控、瓦特数和电压监控等创新技术,为使用者提供一套完整节能减碳、绿能思维的云端智慧电源应用生态系统。

* 图片仅供参考,完整规格及灯光效果以实际产品为主。
打造RGB 耀眼色彩系统
Toughpower iRGB Plus系列电源,除了展现RGB耀眼色彩美学也提供系统稳定且充足的输出电压,适合想拥有数位监控功能与表现个人特色的玩家。

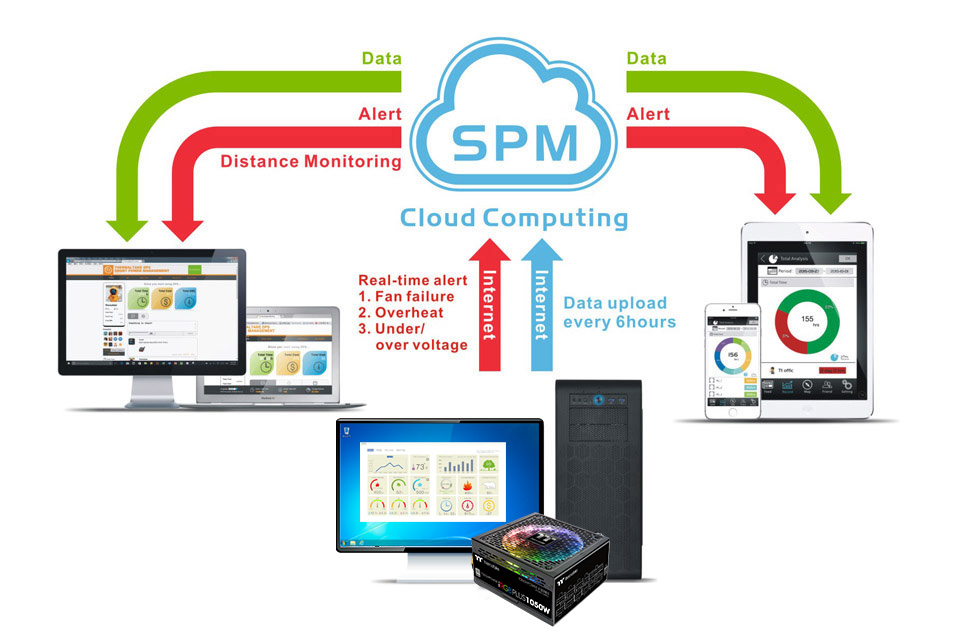

云端智慧电源管理服务架构


※图片仅供参考

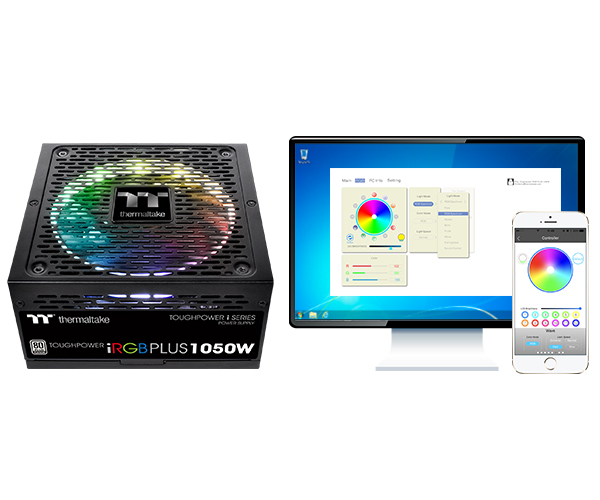

Toughpower iRGB PLUS白金牌系列拥有12颗可单独控制的LED灯,呈現1680万色彩光学,色泽变换明亮耀眼,玩家可通过DPS G PC App软体切换灯光模式,轻松打造与众不同的主机系统。

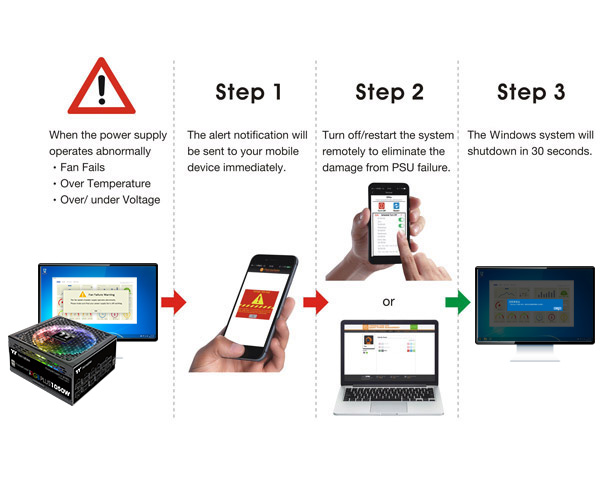

云端智慧电源管理平台提供三种警示功能:当电源本身溫度达到60°C/140℉、风扇在未经设定下转速值RPM为零或是电压超过标准值±5%,故障警告机制会立即启动,并传送异常信息至电子邮件与移动应用程序,以及推播到云端管理平台,提醒使用者有上述异常状况产生,降低危险发生。

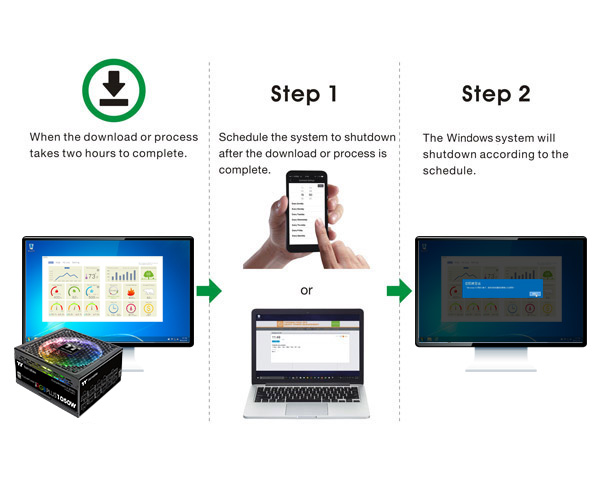

使用者可以通过云端智慧电源管理平台或手机APP随时设定排程执行远程关机。只要通过手机远端就可设定时间排程关机,可节省能源和减少电费。

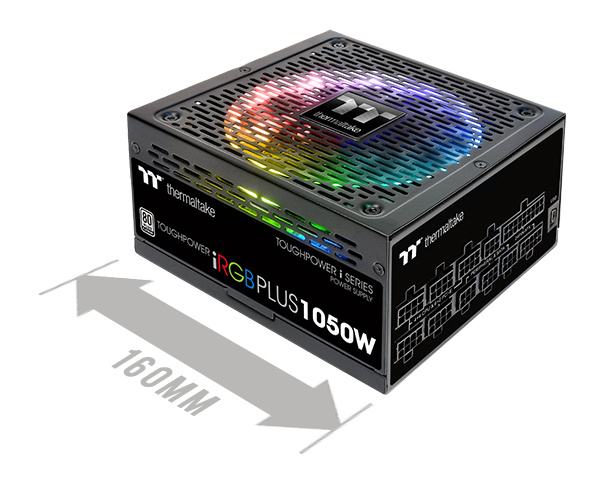

Toughpower iRGB PLUS白金牌电源深度160mm,方便玩家空间运用,提升机箱內部散热效果。

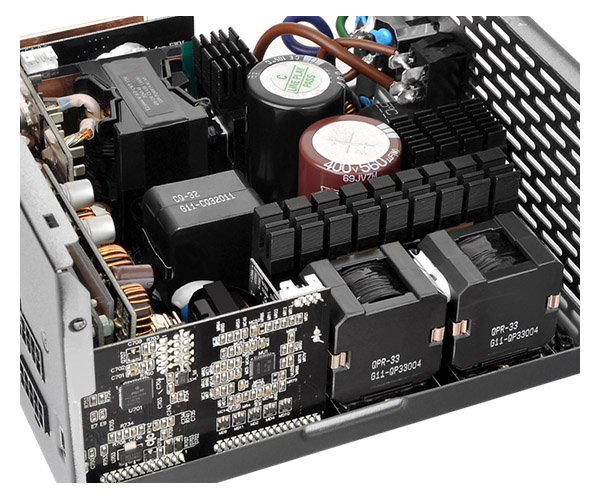

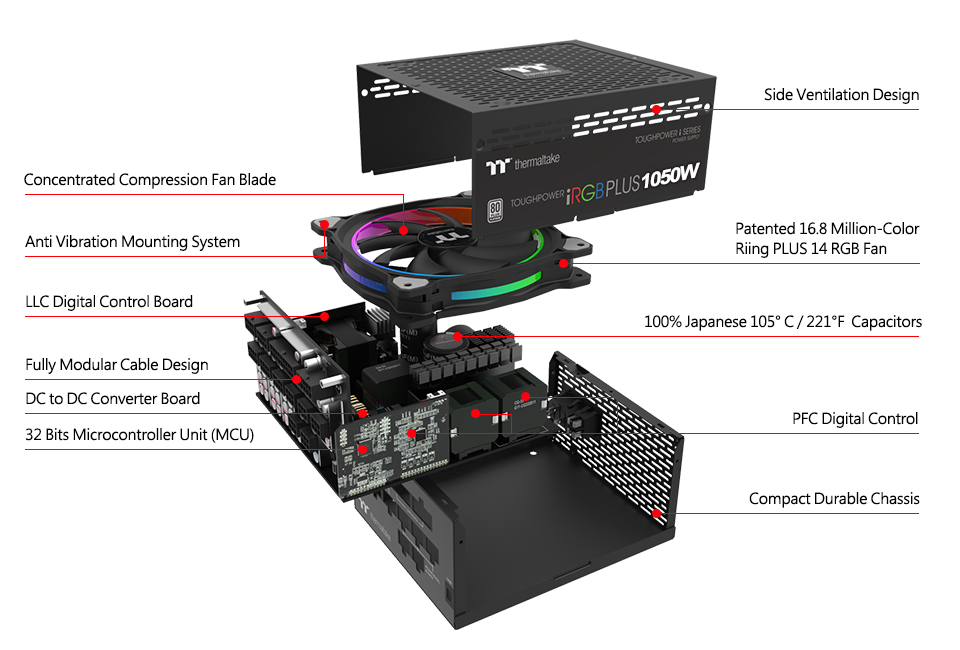

全新电路板设计整合PFC 及 LLC的积体电路不仅可降低涟波杂讯,也加強主电压控制,提升电源供应器整体效能。

Tougphpower Grand iRGB白金牌系列+12V、+5V或+3.3V电压不论在任何负载下,涟波杂讯都低于30mV,大幅优于Intel规范标准,提供玩家电脑系统干净稳定的供电品质。

为求电压稳定度,Tougphpower Grand iRGB白金牌系列的+12V、+5V或+3.3V输出电压波动范围维持在±2%內,优于Intel规范的< ±5%标准,维持高品质电压输出状态。

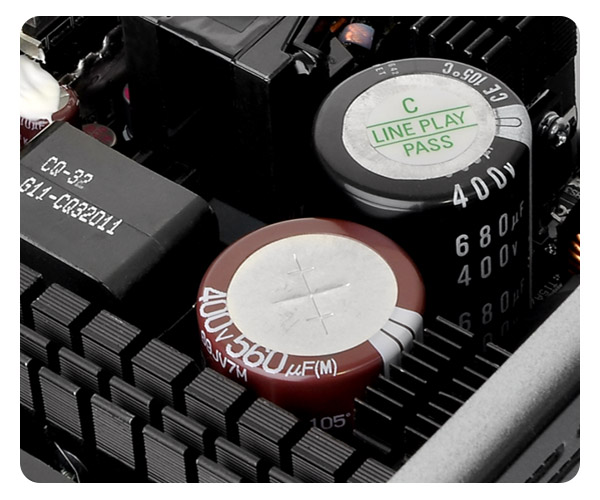

高品质100%全日系电容具备低电阻,优异的高效能及稳定度,可延长使用寿命及提升产品耐用度。

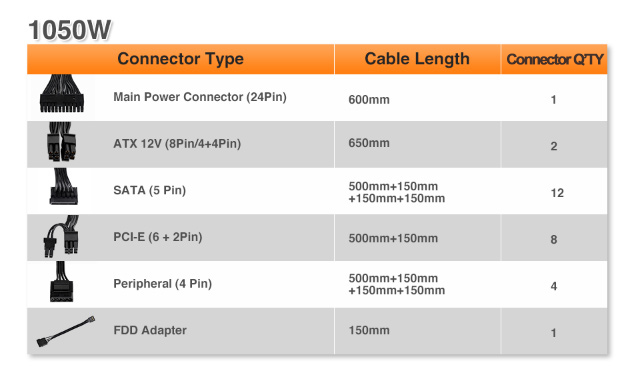

全模组化线材设计确保使用者快速安装电源,使用者仅需挑选所需线材进行安装,全扁线线材更可有效改善电脑系统风流,并易于整理线材减少杂乱。

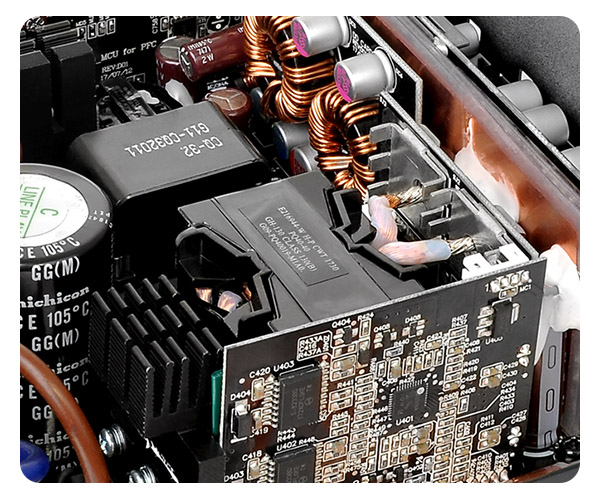

Toughpower iRGB PLUS 白金牌通过微芯科技的32位元MCU微控制器技术,如同小型化电脑,包含处理器核心、记忆体和程式化的输出/输入埠,可有效处理电源內部资讯,有效转换成精华的系统数据,可快速提供使用者数据分析及使用状态。

数位电源支援高效率交换电晶体,只执行必要步骤,耗费較少能源,散发更少热能与电力,并纳入了更轻巧的电晶体。体积更小、更有效率的零件,得以改变PC中最笨重的元件組成,借此打造更加轻巧的电源。

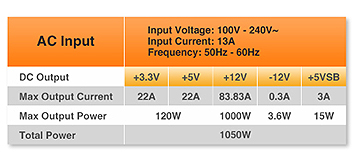

Toughpower iRGB PLUS白金牌系列采用高电流单组+12V输出,为CPU及VGA提供充足电源,避免因为输出限制及线路分配不佳而影响供电,在各种不同负载下可发挥绝佳的效能。

通过高效率电路设计来节省能源消耗,可达94%的转换效率,并通过80 PLUS®白金牌认证。此外也支持Intel Kaby lake-Ready处理器平台,提供更稳定、高效且节能的解決方案。

Toughpower iRGB PLUS白金牌系列电源,能够为数个VGA显卡提供稳定且充足的输出电压,也能够为VR系统提供最好的显卡兼容性。

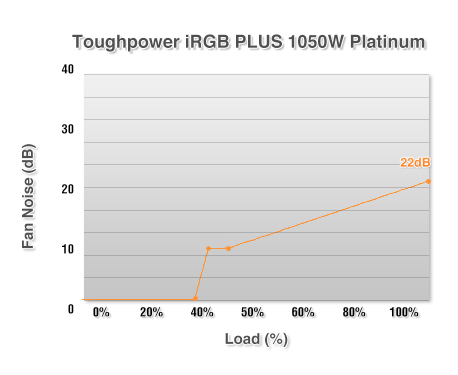

DPS G PC APP 3.0监控软体在风扇转速设定上,提供静音、效能和零转速模式。零转速模式在风扇静止下,有效降低系统噪音;而在系统负载超过40%后,风扇会自动运作,以维持散热效能。

型号 | PS-TPI-1050F2FDPx-1 |
---|---|
watts | 1050W |
RGB风扇 | 有 |
主板兼容性 | ATX |
机种 | TPI-1050DH3FCP |
系列 | ATX 12V v2.4 and EPS v2.92 |
最大输出瓦数 | 1050W |
输出瓦数 | 1260W |
颜色 | Black |
尺寸:宽所述高所述长 | 150mm(W) x 86mm(H) x 160mm(D) |
PFC(电源因素校正) | Active PFC |
P.G讯号 | 100-500 msec |
关机保持时间 | > 16msec at 100% of full load |
输入电流 | 13A |
输入频率 | 50Hz - 60Hz |
输入电压 | 100V – 240V~ |
操作温度 | 0°C to + 50°C |
操作湿度 | 20% to 90%,non-condensing |
储存湿度 | -20°C to + 70°C |
储存温度 | 5% to 95%, non-condensing |
散热系统 | 14cm hydraulic bearing fan |
效率 | Meet 80 PLUS®Platinum at 115Vac input. |
平均故障间隔时间 | 120,000 hrs minimum |
安规认证 | CE/cTUVus/TÜV/FCC/CCC/EAC /S-Mark |
PCI-E 6+2pin | 8 |
使用手册
- 档名
- 描述
- 尺寸
- Version
- Release Date
驱动程式&软体
- 档名
- 描述
- 尺寸
- Version
- Release Date
The new and colorful Thermaltake Toughpower iRGB PLUS Platinum 1200W is aimed more at high-end users and technology geeks. The power supply offers a very good technology, high quality workmanship and, following the Eco-Trend, high efficiency. The numerous connection options and the clear DPS software feature complete the power PSU perfectly. Also the selling price goes in view of the offered achievement and quality in order. In short, technologu enthusiasts can easily take a look!
<More>With that out of the way the in terms of rail stability and even noise levels the iRGB PLUS 1200W has nothing to be jealous from the GRAND RGB 1200W and vice versa so if you feel that Thermaltake’s SPM is something you could put to good use this was made for you
<More>It'd be nice to see Thermaltake release more high-performance PSUs in the near future. We've mentioned this many times before: it's bad when enthusiasts only have a handful of options at the high-end. More brands vying for the crown leads to stronger competition and better pricing. Thermaltake is a big company with the resources to do things correctly. If its people paid more attention to details, the TPI-1200F2FDP would be much better. For example, the inaccurate power-good signal in this unit is a huge oversight, which TT should fix before the product gets into too many hands. Hopefully, in the next revision of this platform, the problem will be solved. Moreover, Thermaltake should replace the mediocre Chemi-Con KZE cap on its +12V board, which gets quite hot under high loads. That'll notably restrict its already-short lifetime. If you fancy RGB lighting and want a powerful (yet quiet) power supply, then the TPI-1200F2FDP is a decent choice in this competitive category. Its direct competition (Corsair, EVGA, Seasonic, SilverStone) lacks RGB-endowed options, so Thermaltake is practically playing alone in this efficiency class, at least for now.
<More>All in all, the Toughpower iRGB PLUS has become a nice power supply that, of course, stands out because of the great RGB fan with its beautiful effects. The price of 180 euros can certainly be described as appropriate for all this. Away from the design, but you get a great power supply with very stable voltages, very high efficiency and otherwise excellent values.
