View 37 Riing中塔式开窗机箱 View 37 Riing中塔式开窗机箱 View 37 Riing中塔式开窗机箱 View 37 Riing中塔式开窗机箱 View 37 Riing中塔式开窗机箱 View 37 Riing中塔式开窗机箱
View 37 Riing中塔式开窗机箱

View 37 Riing中塔式开窗机箱

现货
型号
CA-1J7-00M1WN-00
¥ 799.00

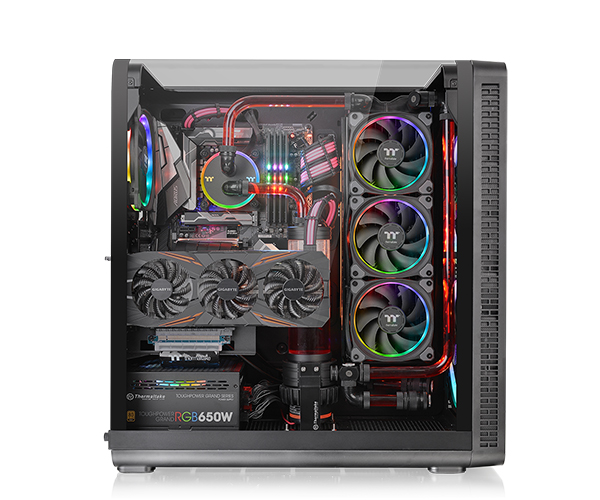

中塔式机箱,特殊加大鸥翼式开窗设计,搭配两个内置Riing 14cm风扇,可安装高达两个200mm风扇,兼具散热效能及高度扩充性

*此图仅供参考。内置两个Riing 14蓝色风扇。

*此图仅供参考

*此图仅供参考




更多信息
型号 CA-1J7-00M1WN-00
系列 光透 View 系列
机型 Mid Tower
尺寸(高*宽*深) 525 x 261 x 538mm
(20.6 x 10.3 x 21.2 inch)
重量 11.8 kg / 26.01 lb
侧窗 L-type transparent window
颜色 Exterior & Interior : Black
材质 SPCC
散热系统 Front (intake) :
140 x 140 x 25 mm Riing LED Blue fan (1400rpm, 28dBA) x 1
(1000rpm, 22dBA with LNC)
Rear (exhaust) :
140 x 140 x 25 mm Riing LED Blue fan (1400rpm, 28dBA) x 1
(1000rpm, 22dBA with LNC)
PCI插槽 8 + 2
适用主机板 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX), 12” x 13” (E-ATX)
I/ O连接埠 USB 3.0 x 2, USB 2.0 x 2, HD Audio x 1
电源供应器 Standard PS2 PSU (optional)
风扇支持 Front:
3 x 120mm, 3x 140mm, 2 x 200mm
Rear:
1 x 120mm
Right Side(In front of M/B Tray):
3 x 120mm, 3 x 140mm
Bottom:
1 x 120mm, 1 x 140mm
水冷排支援 Front: 1 x 360mm , 1 x 280mm
Rear: 1 x 120mm
Right Side(In front of M/B Tray): 1 x 360mm, 1 x 420mm
Clearance CPU cooler height limitation: 180mm
PSU length limitation:220mm
VGA length limitation: 410mm (Without Front Fan)
Vertical VGA width limitation: 3 Expansion Slot width (60mm)

使用手册

  • 档名
  • 描述
  • 尺寸
  • Version
  • Release Date
  • Manual
  • Multi-language
  • 15.2 MB
  • 2018-02-02
  • Manual
  • Multi-language
  • 1.6 MB
  • 0
  • 2018-02-02
  • Manual
  • Multi-language
  • 15.2 MB
  • 2018-02-05
Gamersnexus
2018-12-07

Installing front intake fans on the inside of the chassis is a good option to improve cooling for those who don’t care about obstructing their LEDs and aren’t using a front-mounted radiator. The side radiator mount is also nice to have, and it’d work well configured as exhaust. We’d prefer the case to have normal legs rather than plastic skirting that’s nearly flush with the floor, and we’d prefer a bigger vent in the bottom of the front panel (or just mesh). Otherwise, considering that this is a case built around a specific side panel design, Thermaltake has done a pretty good job.

<More>
Hardwareinside
2018-12-07

Pro

  • Design
  • Verarbeitung
  • Einbau vieler Lüfter möglich
  • Wasserkühlung geeignet
  • Stehender Grafikkarten Einbau möglich
  • Zwei 140 mm Riing Lüfter
  • Viel Platz für Laufwerke
<More>
Play3r
2018-12-07

What’s Hot?

  • VRV – vertical radiator view
  • Vertical GPU Mount
  • A large radiator and found support list
  • Well ventilated and dust filtered
<More>
